CS5460A

Single Phase Bi-Directional Power/Energy

CS5460A Features

* Energy Data Linearity: ±0.1% of Reading over 1000:1 Dynamic Range.

* On-Chip Functions: (Real) Energy, I  V, IRMS and VRMS, Energy-to-Pulse Conversion

* Smart “Auto-boot” Mode from Serial EEPROM Enables Use without MCU.

* AC or DC System Calibration

* Mechanical Counter/Steppe

CS5460A General Description

The CS5460A is a highly integrated power measurement solution which combines two  Analog-to-digital Converters (ADCs), high-speed power calculation functions, and a serial interface on a single chip. It is designed to accurately measure and calculate: Real (True) Energy, Instantaneous Power, IRMS,.

CS5460A Datasheet (693.17 KB)

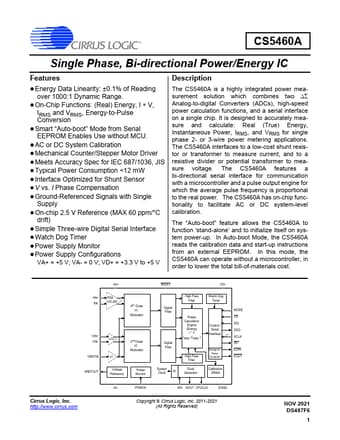

Preview of CS5460A PDF

Datasheet Details

Part number:

CS5460A

Manufacturer:

Cirrus Logic

File Size:

693.17 KB

Description:

Single phase bi-directional power/energy.
