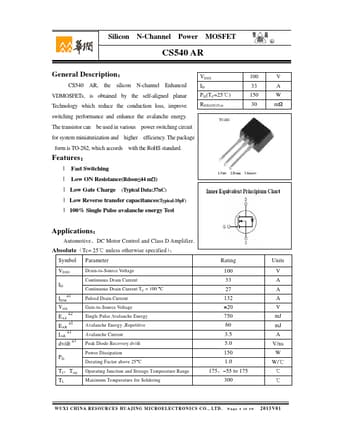

CS540AR Datasheet, Mosfet, Huajing Microelectronics

CS540AR Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤44 mΩ) l Low Gate Charge (Typical Data:37nC) l Low Reverse transfer capacitances(Typical:10pF) l 100% Single Pulse avalanche energy Test

PDF File Details

Part number:

CS540AR

Manufacturer:

Huajing Microelectronics

File Size:

523.28kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS540 AR, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction lo

CS540AR Application

• Applications Automotive、DC Motor Control and Class D Amplifier. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS

TAGS

CS540AR

Huajing Microelectronics
