CS540A4

Silicon N-Channel Power MOSFET

CS540A4 Features

* l Fast Switching l Low ON Resistance(Rdson≤44 mΩ) l Low Gate Charge (Typical Data:37nC) l Low Reverse transfer capacitances(Typical:10pF) l 100% Single Pulse avalanche energy Test Applications: Automotive、DC Motor Control and Class D Amplifier. Absolute(Tc= 25℃ unless otherwise specified): Symbol

CS540A4 General Description

CS540 A4, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance VDSS ID PD(TC=25℃) RDS(ON)Typ 100 33 150 30 the avalanche energy. The transistor can be used in various power switchi.

CS540A4 Datasheet (534.31 KB)

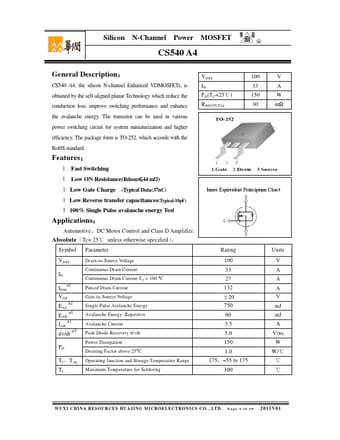

Preview of CS540A4 PDF

Datasheet Details

Part number:

CS540A4

Manufacturer:

Huajing Microelectronics

File Size:

534.31 KB

Description:

Silicon n-channel power mosfet.
