CS8427

96 kHz Digital Audio Interface Transceiver

Cirrus Logic

CS8427 Features

* Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF-compatible Transceiver

* +5.0 V Analog Supply (VA+)

* +3.3 V or +5.0 V Digital Interface (VL+)

* Flexible 3-wire Serial Digital I/O Ports

* Adjustable Sample Rate up to 96 kHz

* Low-jitter Clock Recovery

* Pin and Microcontr

CS8427 General Description

The CS8427 is a stereo digital audio transceiver with AES3 and serial digital audio inputs, AES3 and serial digital audio outputs, and includes comprehensive control ability through a 4-wire microcontroller port. Channel status and user data are assembled in block-sized buffers, making read/modify/w.

CS8427 Datasheet (664.05 KB)

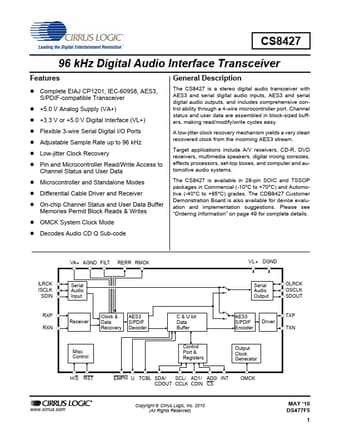

CS8427 Datasheet Preview — Preview of CS8427 PDF

Datasheet Details

Part number:

CS8427

Manufacturer:

Cirrus Logic

File Size:

664.05 KB

Description:

96 khz digital audio interface transceiver.
