CPC1945Y - AC Solid State Relay

Clare Inc.

CPC1945Y Description

CPC1945Y AC Solid State Relay Load Voltage Load Current On-State Voltage Drop CPC1945Y 120 1.0 1.6 Units VRMS A VRMS (at IL=1.0A) .
The CPC1945Y is a AC Solid State Switch using patented waveguide coupling with dual power SCR outputs to produce an alternative to optocoupler and Tri.

CPC1945Y Features

* Load Current up to 1A
* Blocking Voltage to 400V
* 5mA Sensitivity
* Zero-Crossing Detection
* DC Control, AC Output
* Optically Isolated
* TTL and CMOS Compatible
* Low EMI and RFI Generation
* High Noise Immunity
* V

CPC1945Y Applications

* Programmable Control
* Process Control
* Power Control Panels
* Remote Switching
* Gas Pump Electronics
* Contractors
* Large Relays
* Solenoids
* Motors

📥 Download Datasheet

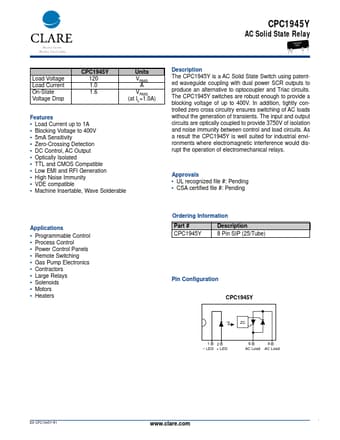

CPC1945Y Datasheet Preview — Preview of CPC1945Y PDF

Datasheet Details

Part number: CPC1945Y
Manufacturer: Clare Inc.
File Size: 122.00 KB
Datasheet: CPC1945Y_ClareInc..pdf
Description: AC Solid State Relay
