CPC1908J

Open Power Relay

CPC1908J Features

* 8.5Arms Load Current with 5°C/W Heat Sink

* Low 0.3 On-Resistance

* 60VP Blocking Voltage

* 2500Vrms Input/Output Isolation

* Low Thermal Resistance: JC = 0.35 °C/W

* Isolated, Low Thermal Impedance Ceramic Pad for Heat Sink Applications

CPC1908J General Description

IXYS Integrated Circuits Division and IXYS have combined to bring OptoMOS® technology, reliability and compact size to a new family of high-power Solid State Relays. As part of this family, the CPC1908 single-pole normally open (1-Form-A) Solid State Power Relay is rated for up to 8.5Arms continuou.

CPC1908J Datasheet (200.55 KB)

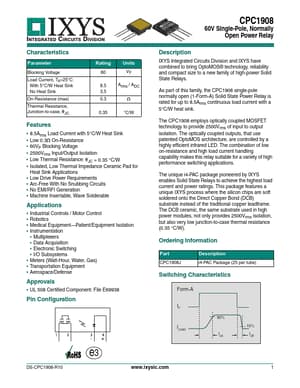

Preview of CPC1908J PDF

Datasheet Details

Part number:

CPC1908J

Manufacturer:

IXYS

File Size:

200.55 KB

Description:

Open power relay.
INTEGRATED CIRCUITS DIVISION CPC1908 60V Single-Pole, Normally Open Power Relay Characteristics Parameter Blocking Voltage Load Current, TA=25°C: Wi.
