CPC1909J

Power Relay

IXYS

CPC1909J Features

* 15Arms Load Current with 5°C/W Heat Sink

* Low 0.1 On-Resistance

* 60VP Blocking Voltage

* 2500Vrms Input/Output Isolation

* Low Thermal Impedance: JC = 0.3 °C/W

* Isolated, Low Thermal Impedance Ceramic Pad for Heat Sink Applications

* Low

CPC1909J General Description

IXYS Integrated Circuits brings OptoMOS® technology, reliability and compact size to a new family of high-power Solid State Relays. As part of this family, the CPC1909 single-pole normally open (1-Form-A) Solid State Power Relay is rated for up to 15Arms continuous load current with a 5°C/W heat sin.

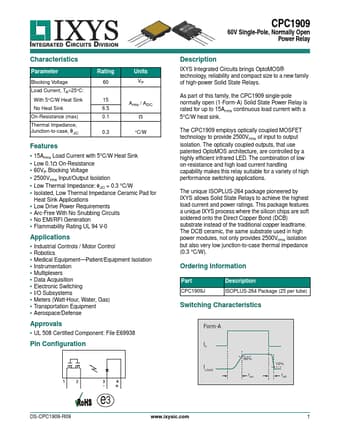

CPC1909J Datasheet (137.89 KB)

CPC1909J Datasheet Preview — Preview of CPC1909J PDF

Datasheet Details

Part number:

CPC1909J

Manufacturer:

IXYS

File Size:

137.89 KB

Description:

Power relay.
INTEGRATED CIRCUITS DIVISION Characteristics Parameter Blocking Voltage Load Current, TA=25°C: With 5°C/W Heat Sink No Heat Sink On-Resistance (max) .
