LIA100 - Linear Isolation Amplifier

Clare Inc.

The LIA100 by Clare Inc. is a Linear Isolation Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

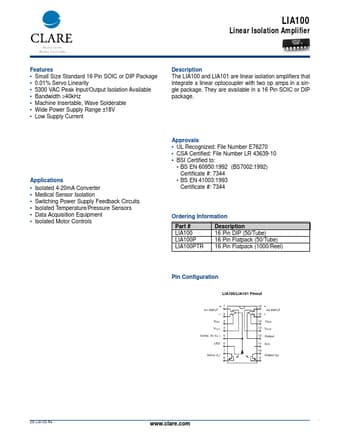

LIA100 Linear Isolation Amplifier by Clare Inc. - Datasheet Preview — Official preview page of the **LIA100** Linear Isolation Amplifier datasheet (Clare Inc.).

Datasheet Details

Part number	LIA100
Manufacturer	Clare Inc.
File Size	96.00 KB
Description	Linear Isolation Amplifier
Datasheet	LIA100_ClareInc..pdf
Additional preview pages of the LIA100 datasheet.

LIA100 Product details

Description

The LIA100 and LIA101 are linear isolation amplifiers that integrate a linear optocoupler with two op amps in a single package. Isolated 4-20mA Converter Medical Sensor Isolation Switching Power Supply Feedback Circuits Isolated Temperature/Pressure Sensors Data Acquisition Equipment Isolated Motor Controls Approvals UL Recognized: File Number E76270

Features

Small Size Standard 16 Pin SOIC or DIP Package.
0.01% Servo Linearity.
5300 VAC Peak Input/Output Isolation Available.
Bandwidth ≥40kHz.
Machine Insertable, Wave Solderable.
Wide Power Supply Range ±18V.
Low Supply Current.
