LIA101

Linear Isolation Amplifier

LIA101 Features

* Small Size Standard 16 Pin SOIC or DIP Package

* 0.01% Servo Linearity

* 5300 VAC Peak Input/Output Isolation Available

* Bandwidth ≥40kHz

* Machine Insertable, Wave Solderable

* Wide Power Supply Range ±18V

* Low Supply Current Description

LIA101 General Description

The LIA100 and LIA101 are linear isolation amplifiers that integrate a linear optocoupler with two op amps in a single package. They are available in a 16 Pin SOIC or DIP package. Applications

* Isolated 4-20mA Converter

* Medical Sensor Isolation

* Switching Power Supply Fe.

LIA101 Datasheet (97.00 KB)

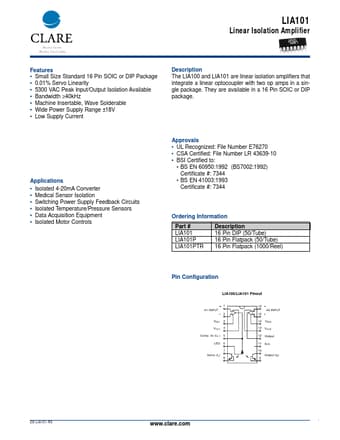

Preview of LIA101 PDF

Datasheet Details

Part number:

LIA101

Manufacturer:

Clare Inc.

File Size:

97.00 KB

Description:

Linear isolation amplifier.
