LIA136, LIA135 Error Amplifiers

LIA136 Description

INTEGRATED CIRCUITS DIVISION LIA135 / LIA136 Low Voltage Optically Isolated Error Amplifiers .
The LIA135 and LIA136 are low voltage optically isolated error amplifiers with a precision programmable shunt reference combined into a single package.

LIA136 Features

* Low Input Voltage of 1.6V over temperature
* Precision reference, error amplifier, and optocoupler in a single package
* Voltage Reference: 1.299V ±0.5% @ 25°C LIA135: ±1% @ -40°C to +85°C LIA136: ±1.5% @ -40°C to +110°C
* LIA136: Reduced dark current at high temper

LIA136 Applications

* Low Voltage Power Supply Feedback
* Isolated Power Supply Feedback
* AC-to DC Power Supplies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LIA136, LIA135. Please refer to the document for exact specifications by model.

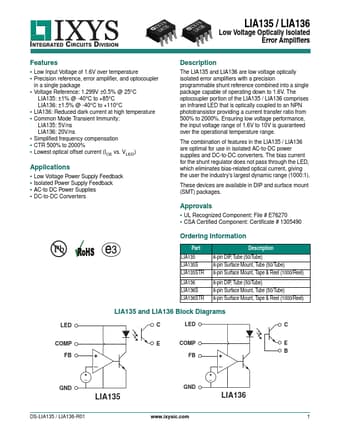

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LIA136, LIA135
Manufacturer
IXYS
File Size
247.08 KB
Datasheet
LIA135-IXYS.pdf
Description
Error Amplifiers
Note
This datasheet PDF includes multiple part numbers: LIA136, LIA135.
Please refer to the document for exact specifications by model.
