M-982-02 Datasheet, Detector, Clare Inc.

M-982-02 Features

  • Detector
  • Precise detection of call progress tones
  • Linear (analog) input
  • Digital (CMOS compatible), tri-state outputs
  • 22-pin DIP and 20-pin SOIC

PDF File Details

Part number:

M-982-02

Manufacturer:

Clare Inc.

File Size:

200.40kb

Download:

📄 Datasheet

Description:

Precise call progress tone detector. The M-982-02 is an integrated circuit precise tone detector for special-purpose use in automatic following of switched telephone call

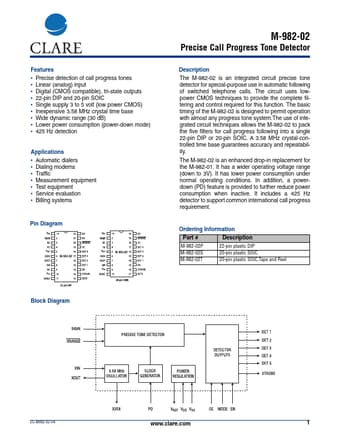

Datasheet Preview: M-982-02 📥 Download PDF (200.40kb)
Page 2 of M-982-02 Page 3 of M-982-02

M-982-02 Application

  • Applications
  • Automatic dialers
  • Dialing modems
  • Traffic
  • Measurement equipment
  • Test equipment
