M-980-02 - 3V/5V General Purpose Call Progress Tone Detector

Datasheet Summary

Description

The M-980-02 is an integrated circuit tone detector for general purpose use in automatic following of switched telephone calls.

The circuit uses low-power CMOS techniques to provide the complete filtering and control required for this function.

Features

  • Covers the 315 to 640 Hz range (common call progress).
  • Sensitivity to -38 dBm.
  • Dynamic range over 38 dB.
  • 40 ms minimum detect.
  • 8-pin DIP or 16-pin SOIC.
  • Single supply CMOS (low power).
  • Supply range 2.8 to 5.5 VDC.
  • Inexpensive 3.58 MHz time base.
  • Low power consumption (.

📥 Download Datasheet

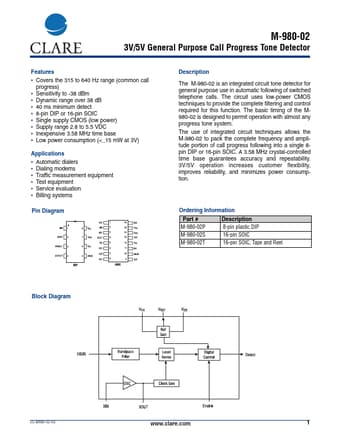

Datasheet preview – M-980-02
