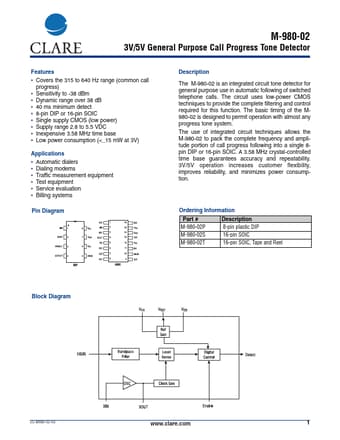

M-980-02T Datasheet, Detector, Clare Inc.

M-980-02T Features

• Detector
• Covers the 315 to 640 Hz range (common call progress)
• Sensitivity to -38 dBm
• Dynamic range over 38 dB
• 40 ms minimum detect
• 8-pin DIP or

PDF File Details

Part number:

M-980-02T

Manufacturer:

Clare Inc.

File Size:

181.08kb

Download:

📄 Datasheet

Description:

3v/5v general purpose call progress tone detector. The M-980-02 is an integrated circuit tone detector for general purpose use in automatic following of switched telephone calls. The c

M-980-02T Application

• Applications
• Automatic dialers
• Dialing modems
• Traffic measurement equipment
• Test equipment
• Service
