M-985-01T

Precise Call Progress and Special Information Tone Generator

M-985-01T Datasheet (241.73 KB)

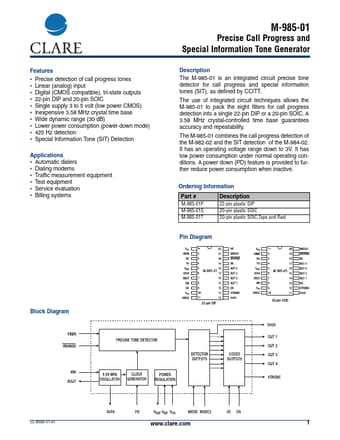

Preview of M-985-01T PDF Datasheet

Datasheet Details

Part number:

M-985-01T

Manufacturer:

Clare Inc.

File Size:

241.73 KB

Description:

Precise call progress and special information tone generator

M-985-01T Features

* Precise detection of call progress tones Linear (analog) input Digital (CMOS compatible), tri-state outputs 22-pin DIP and 20-pin SOIC Single supply 3 to 5 volt (low power CMOS) Inexpensive 3.58 MHz c

M-985-01T General Description

The M-985-01 is an integrated circuit precise tone detector for call progress and special information tones (SIT), as defined by CCITT. The use of integrated circuit techniques allows the M-985-01 to pack the eight filters for call progress detection into a single 22-pin DIP or a 20-pin SOIC. A 3.58.
