PBA150STR - DUAL POLE OptoMOS Relay

Product Overview

Clare Inc.

📥 Download Datasheet

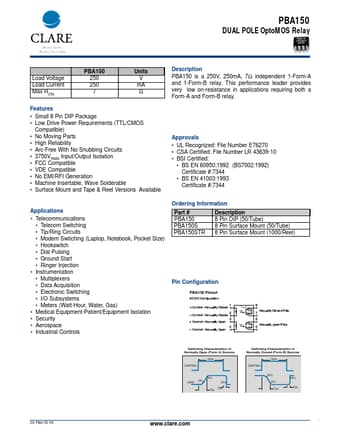

PBA150STR DUAL POLE OptoMOS Relay by Clare Inc. - Datasheet Preview — Datasheet preview – PBA150STR

Datasheet Details

Part number	PBA150STR
Manufacturer	Clare Inc.
File Size	91.00 KB
Description	DUAL POLE OptoMOS Relay
Datasheet	PBA150STR Datasheet
Additional preview pages of the PBA150STR datasheet.

Product details

Description

PBA150 is a 250V, 250mA, 7Ω independent 1-Form-A and 1-Form-B relay.

Features

Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generation.
Machine Insertable, Wave Solderable.
Surface Mount and Tape & Reel Versions Available Approvals.
UL Recognized: File Number E76270.
CSA Certified.
