LAA110 Dual Pole OptoMOS Relays

LAA110 Description

LAA110 Dual Pole OptoMOS® Relays Load Voltage Load Current Max RON LAA110 350 120 35 Units V mA Ω .
LAA110 is a Dual 1 Form-A solid state relay that has two independently controlled optically coupled MOSFETs.

LAA110 Features

* Small 8 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Isolation
* FCC Compatible
* VDE Compatible
* No EM

LAA110 Applications

* The dual pole relays save board space by incorporating both relays in a single 8-pin package. Approvals
* UL Recognized: File Number E76270
* CSA Certified: File Number LR 43639-10
* BSI Certified to:
* BS EN 60950:1992 (BS7002:1992) Certificate #: 7344
* BS

📥 Download Datasheet

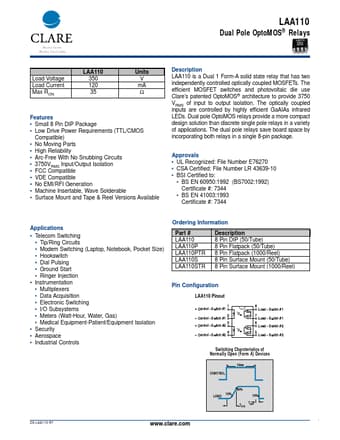

Preview of LAA110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAA110
Manufacturer
Clare
File Size
137.00 KB
Datasheet
LAA110_ClareInc..pdf
Description
Dual Pole OptoMOS Relays
