PLA110STR, PLA110 - Single Pole OptoMOS Relays

PLA110STR Description

PLA110 Single Pole OptoMOS® Relays Load Voltage Load Current Max RON PLA110 400 150 22 Units V mA Ω .
PLA110 is a 1-Form-A solid state relay which uses optically coupled MOSFET technology to provide 3750V of input to output isolation.

PLA110STR Features

* Small 6 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Isolation
* FCC Compatible
* VDE Compatible
* No EM

PLA110STR Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket Size)
* Hookswitch
* Dial Pulsing
* Ground Start
* Ringer Injection
* Instrumentation
* Multiplexers
* Data

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PLA110STR, PLA110. Please refer to the document for exact specifications by model.

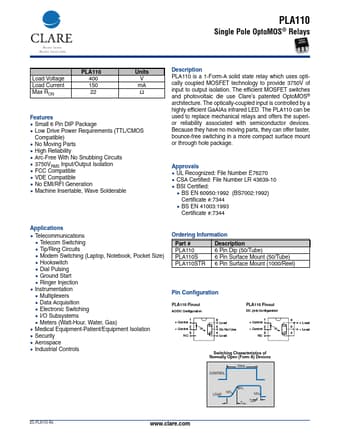

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PLA110STR, PLA110
Manufacturer
Clare
File Size
476.89 KB
Datasheet
PLA110-Clare.pdf
Description
Single Pole OptoMOS Relays
Note
This datasheet PDF includes multiple part numbers: PLA110STR, PLA110.
Please refer to the document for exact specifications by model.
