PLA134

Single Pole OptoMOS Relays

PLA134 Features

* Small 6 Pin DIP Package

* Low Drive Power Requirements (TTL/CMOS Compatible)

* No Moving Parts

* High Reliability

* Arc-Free With No Snubbing Circuits

* 3750VRMS Input/Output Isolation

* FCC Compatible

* VDE Compatible

* No EM

PLA134 General Description

The PLA134 is a 1-Form-A solid state relay which uses optically coupled MosFET technology to provide 3750V of input to output isolation. The efficient MosFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. The optically-coupled input is controlled by a highly efficient GaAI.

PLA134 Datasheet (129.90 KB)

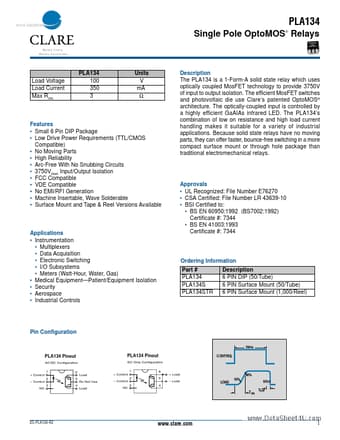

Preview of PLA134 PDF

Datasheet Details

Part number:

PLA134

Manufacturer:

Clare

File Size:

129.90 KB

Description:

Single pole optomos relays.
