PLA170

Single Pole OptoMOS Relay

PLA170 Features

* 100% Solid State

* Small 6 Pin Package

* Low Drive Power Requirements (TTL/CMOS Compatible)

* Arc-Free With No Snubbing Circuits

* 3750Vrms Input/Output Isolation

* No EMI/RFI Generation

* Machine Insertable, Wave Solderable

* 800V bl

PLA170 General Description

The PLA170 is a 1-Form-A Solid State Relay which uses optically coupled MOSFET technology to provide enhanced input-to-output isolation of 3750Vrms. The efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS® architecture. The optically-coupled output is controlled by a GaAIAs i.

PLA170 Datasheet (684.04 KB)

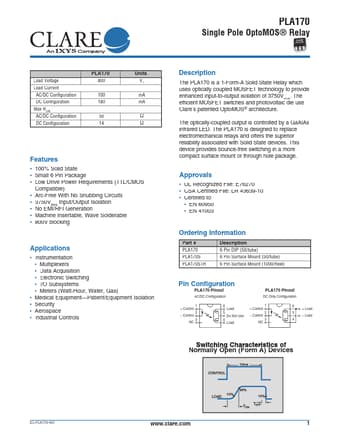

Preview of PLA170 PDF

Datasheet Details

Part number:

PLA170

Manufacturer:

Clare

File Size:

684.04 KB

Description:

Single pole optomos relay.
Single Pole OptoMOS® Relay PLA170 Load Voltage Load Current AC/DC Configuration DC Configuration Max RON AC/DC Configuration DC Configuration PLA17.
