PLA170S

180mA Single-Pole Normally Open Relay

PLA170S Features

* 800VP Blocking Voltage

* 3750Vrms Input/Output Isolation

* 100% Solid State

* Low Drive Power Requirements

* No EMI/RFI Generation

* Small 6-Pin Package

* Flammability Rating UL 94 V-0 Applications

* Instrumentation

* Multipl

PLA170S General Description

PLA170 is a single-pole, normally open (1-Form-A) Solid State Relay that uses optically coupled MOSFET technology to provide an enhanced input-to-output isolation of 3750Vrms. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LE.

PLA170S Datasheet (149.06 KB)

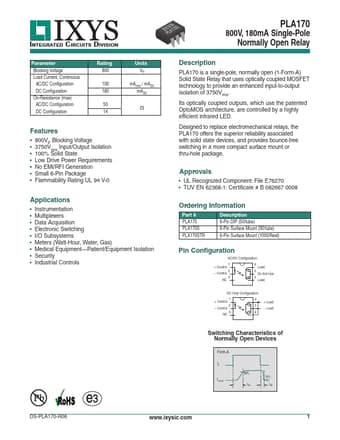

Preview of PLA170S PDF

Datasheet Details

Part number:

PLA170S

Manufacturer:

IXYS

File Size:

149.06 KB

Description:

180ma single-pole normally open relay.
INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current, Continuous AC/DC Configuration DC Configuration On-Resistance (max) AC/DC Confi.
