PLA171

Normally Open Relay

PLA171 Features

* 7mm Separation of Output Pins

* 800VP Blocking Voltage

* 5000Vrms Input/Output Isolation

* Low Drive Power Requirements

* No EMI/RFI Generation

* Small Surface Mount Package

* Flammability Rating UL 94 V-0 Applications

* Instrumentati

PLA171 General Description

Specially designed to provide 7mm of separation between the two output pins, IXYS Integrated Circuits' PLA171 is a single-pole, normally open (1-Form-A) Solid State Relay that uses optically coupled MOSFET technology to provide an enhanced input to output isolation of 5000Vrms. Its optically coupled.

PLA171 Datasheet (140.97 KB)

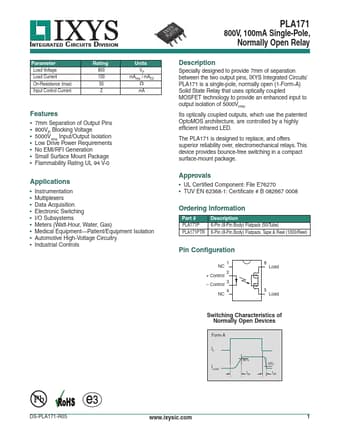

Preview of PLA171 PDF

Datasheet Details

Part number:

PLA171

Manufacturer:

IXYS

File Size:

140.97 KB

Description:

Normally open relay.
INTEGRATED CIRCUITS DIVISION Parameter Load Voltage Load Current On-Resistance (max) Input Control Current Rating 800 100 50 2 Units VP mArms / mAD.
