PLA171P

Normally Open Relay

PLA171P Features

* 7mm Separation of Output Pins

* 800VP Blocking Voltage

* 5000Vrms Input/Output Isolation

* Low Drive Power Requirements

* Arc-Free With No Snubbing Circuits

* No EMI/RFI Generation

* Small Surface Mount Package

* Flammability Rating U

PLA171P General Description

Specially designed to provide 7mm of separation between the two output pins, IXYS Integrated Circuits' PLA171 is a single-pole, normally open (1-Form-A) Solid State Relay that uses optically coupled MOSFET technology to provide an enhanced input to output isolation of 5000Vrms. Its optically coupled.

PLA171P Datasheet (140.97 KB)

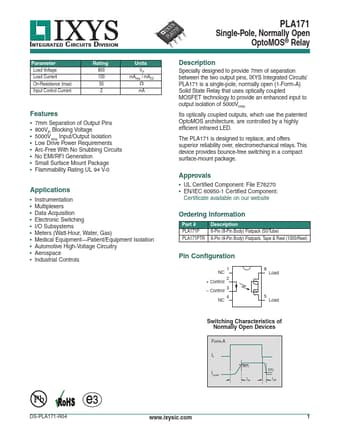

Preview of PLA171P PDF

Datasheet Details

Part number:

PLA171P

Manufacturer:

IXYS

File Size:

140.97 KB

Description:

Normally open relay.
INTEGRATED CIRCUITS DIVISION Parameter Load Voltage Load Current On-Resistance (max) Input Control Current Rating 800 100 50 2 Units VP mArms / mAD.
