150N03 Datasheet, mosfet equivalent, Cmos

150N03 Features

  • Mosfet Simple Drive Requirement Fast Switching Low On-Resistance Absolute Maximum Ratings G DS TO-220 (CMP150N03) BVDSS 30V RDSON 4.5m ID 120A Applications HIGH CURRENT, HIGH SPEED SWITCH

PDF File Details

Part number:

150N03

Manufacturer:

Cmos

File Size:

925.88kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Product Summery The 150N03 is N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most

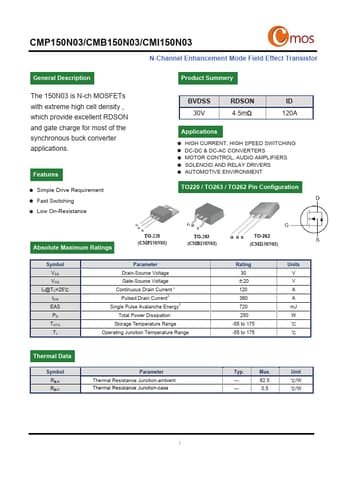

Datasheet Preview: 150N03 📥 Download PDF (925.88kb)
Page 2 of 150N03

150N03 Application

  • Applications Features Simple Drive Requirement Fast Switching Low On-Resistance Absolute Maximum Ratings G DS TO-220 (CMP150N03) BVDSS 30V RDSO
