150N03MD Dual N-Channel MOSFET

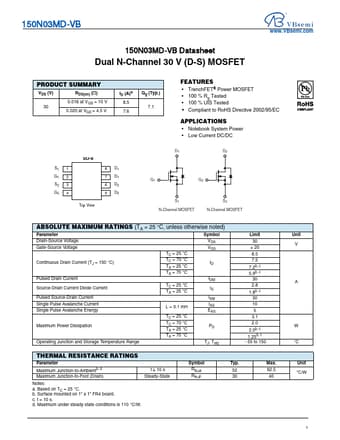

📥 Download Datasheet  Datasheet Preview Page 1

Description

150N03MD-VB www.VBsemi.com 150N03MD-VB Datasheet Dual N-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.016 at VGS = 10 V 30 0.0.

📥 Download Datasheet

Preview of 150N03MD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
150N03MD
Manufacturer
VBsemi
File Size
241.35 KB
Datasheet
150N03MD-VBsemi.pdf
Description
Dual N-Channel MOSFET

Features

* TrenchFETPower MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* Notebook System Power
* Low Current DC/DC S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage C
