0805USBF-901MRB Low Profile USB Common Mode Choke

Document 1270-1 Low Profile USB Common Mode Choke 0805 For noise suppression in super high speed signal lines: USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.; and in high speed differential signal lines: USB 2.0, IEEE1394, LVDS, etc. Suitable for USB-type C specification 1.0 Up to 6 GHz differential mode 3 dB cutoff frequency; up to 30 dB common mode noise attenuation in GHz range Core material Ferrite Environmental RoHS compliant Terminations Matte tin over.

0805USBF-901MRB, 0805USBF-421MRC Datasheet

0805USBF-901MRB Datasheet Preview — This datasheet PDF includes multiple part numbers: 0805USBF-901MRB, 0805USBF-421MRC. Please refer to the document for exact specifications by model.

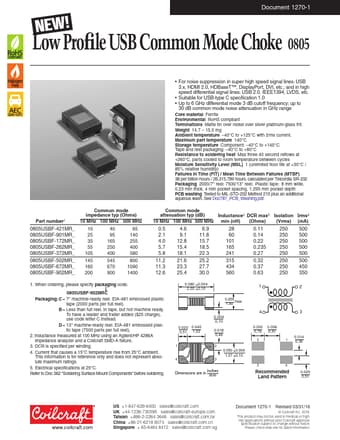

0805USBF-901MRB Datasheet Preview Page 2

Datasheet Details

Part number:

0805USBF-901MRB, 0805USBF-421MRC

Manufacturer:

Coilcraft

File Size:

175.04 KB

Description:

Low profile usb common mode choke.

This datasheet PDF includes multiple part numbers: 0805USBF-901MRB, 0805USBF-421MRC. Please refer to the document for exact specifications by model.
