0805USBF-902MRB Datasheet - Coilcraft

0805USBF-902MRB Low Profile USB Common Mode Choke

Document 1270-1 Low Profile USB Common Mode Chokeā€‚0805 For noise suppression in super high speed signal lines: USB 3.x, HDMI 2.0, HDBaseTā„¢, DisplayPort, DVI, etc.; and in high speed differential signal lines: USB 2.0, IEEE1394, LVDS, etc. Suitable for USB-type C specification 1.0 Up to 6 GHz differential mode 3 dB cutoff frequency; up to 30 dB common mode noise attenuation in GHz range Core materialā€‚Ferrite Environmentalā€‚ RoHS compliant Terminationsā€‚ Matte tin over.

0805USBF-902MRB Datasheet (175.04 KB)

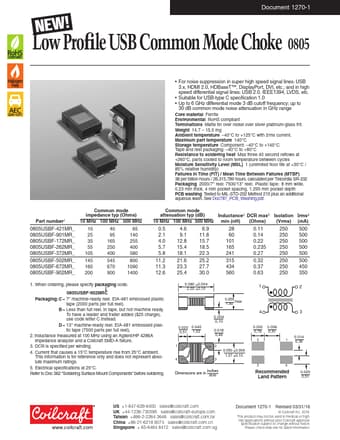

Preview of 0805USBF-902MRB PDF
0805USBF-902MRB Datasheet Preview Page 2

Datasheet Details

Part number:

0805USBF-902MRB

Manufacturer:

Coilcraft

File Size:

175.04 KB

Description:

Low profile usb common mode choke.
