BCL-232JL Datasheet - Coilcraft

BCL-232JL Broadband Conical Inductors

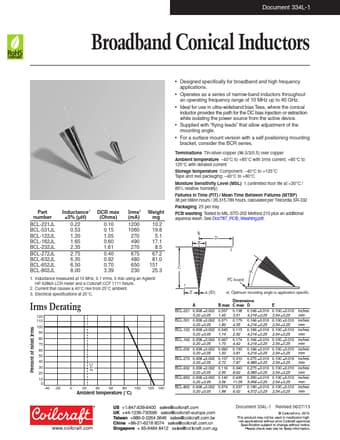

Document 334L-1 Broadband Conical Inductors Part Inductance1 DCR max Irms2 Weight number ±5% (µH) (Ohms) (mA) mg BCL-221JL 0.22 BCL-531JL 0.53 BCL-122JL 1.20 BCL-162JL 1.65 BCL-232JL 2.35 0.10 1200 10.2 0.15 1060 19.8 1.05 270 5.1 0.60 490 17.1 1.61 270 8.5 BCL-272JL 2.75 BCL-632JL 6.35 BCL-652JL 6.50 BCL-802JL 8.00 0.40 0.92 0.70 3.39 675 67.2 480 81.0 650 151 230 25.3 1. Inductance measured at 10 MHz, 0.1 Vrms, 0 Adc using an Agilent/ HP 4286A LCR.
