C1061-AL Datasheet - Coilcraft

C1061-AL PFC Coils

Document 444-1 PFC Coils For ON Semiconductor NCP1653 Power Factor Controller These coils were developed specifically for use with the ON Semiconductor NCP1653 Power Factor Controller (PFC) for driving continuous conduction mode step-up pre-converters. The C1061-A operates in 150 Watt applications. The C1062­­‑B operates in 300 Watt applications and is specified by ON Semiconductor in application note AND8185/D. In addition to the standard parts shown, Coilcraft can design custom magnetics with .

C1061-AL Datasheet (146.54 KB)

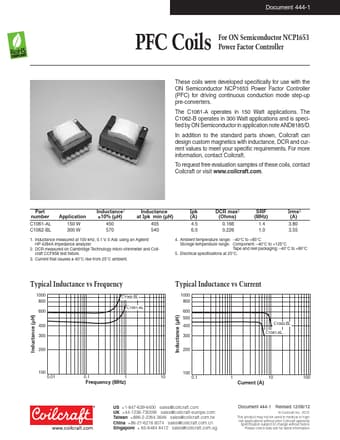

Preview of C1061-AL PDF
C1061-AL Datasheet Preview Page 2

Datasheet Details

Part number:

C1061-AL

Manufacturer:

Coilcraft

File Size:

146.54 KB

Description:

Pfc coils.
