C1099-AL - Flyback Transformers

C1099-AL Description

Document 409 Flyback Transformer ForMaximMAX5941A PoE Interface/PWM Controller * Designed for IEEE 802.3af-compliant PoE applications

C1099-AL Applications

* Operates with 32 
*  56 Volts input
* 1500 Vrms, one minute isolation between the primary and the secondary Core material Ferrite Terminations  RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost. Weight  5.7 g Ambient temp

📥 Download Datasheet

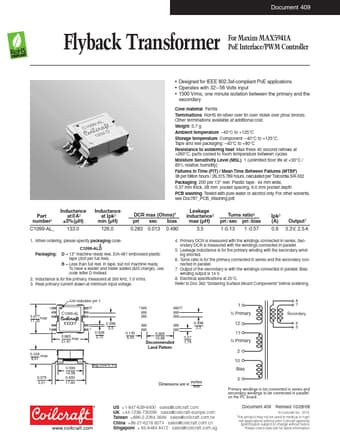

Preview of C1099-AL PDF

Datasheet Details

Part number
C1099-AL
Manufacturer
Coilcraft
File Size
119.80 KB
Datasheet
C1099-AL-Coilcraft.pdf
Description
Flyback Transformers
