C1096 - Silicon NPN Transistor

Datasheet Summary

Description

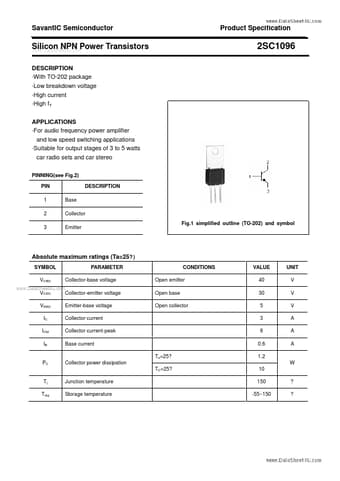

With TO-202 package Low breakdown voltage High current High fT APPLICATIONS For audio frequency power amplifier and low speed switching applications Suitable for output stages of 3 to 5 watts car radio sets and car stereo PINNING(see Fig.2) PIN 1 2 3 Base Collector Emit
