C1023-AL - PoE Transformer

C1023-AL Description

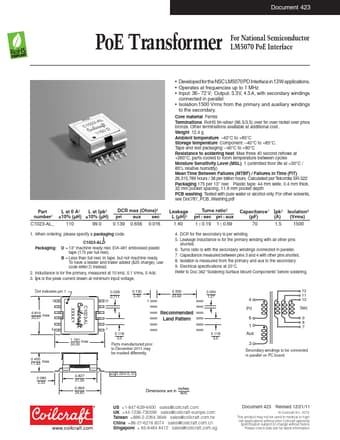

Document 423 PoE Transformer For National Semiconductor LM5070 PoE Interface * Developed for the NSC LM5070 PD Interface in 13 W application.

C1023-AL Applications

* Operates at frequencies up to 1 MHz
* Input: 36 
*   72 V; Output: 3.3 V, 4.5 A, with secondary windings connected in parallel
* Isolation:1500 Vrms from the primary and auxiliary windings to the secondary. Core material Ferrite Terminations  RoHS tin-silver (96.5

📥 Download Datasheet

Preview of C1023-AL PDF

Datasheet Details

Part number
C1023-AL
Manufacturer
Coilcraft
File Size
126.71 KB
Datasheet
C1023-AL-Coilcraft.pdf
Description
PoE Transformer
