C1027 - Silicon NPN Transistor

Datasheet Summary

Description

With TO-3 package High power dissipation Low collector saturation voltage APPLICATIONS Switching regulators DC-DC convertor General purpose power amplifiers PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absol

📥 Download Datasheet

Datasheet preview – C1027

Datasheet Details

Part number C1027
Manufacturer SavantIC
File Size 204.25 KB
Description Silicon NPN Transistor
Datasheet download datasheet C1027 Datasheet
Additional preview pages of the C1027 datasheet.

📁 Similar Datasheet

  • C1020K001F - Coin Vibration Motor (Machinery)
  • C1023-AL - PoE Transformer (Coilcraft)
  • C10-FR1 - Power Inductors (Mitsumi Electronics)
  • C10-H - Power Inductors (Mitsumi Electronics)
  • C10-K - Power Inductors (Mitsumi Electronics)
  • C1000 - Fixed and Adjustable Vitreous Enamel Power Resistors (Ohmite)
  • C1000 - Surface Mount Clock Oscillators (Crystek Crystals)
  • C1000 - Silicon NPN Transistor (ETC)
  • C1003 - Flashing EL Lamp Driver IC (RCL)
  • C1004 - Process C1004 (IMP Inc)
Other Datasheets by SavantIC
  • C1002 - Silicon NPN Power Transistors
  • C1030 - Silicon NPN Transistor
  • C1046 - Silicon NPN Power Transistors
  • C1050 - Silicon NPN Power Transistors
  • C1051 - Silicon NPN Transistor
  • C1096 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

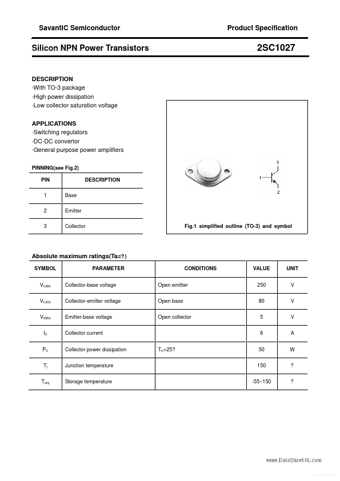

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.com 2SC1027 DESCRIPTION ·With TO-3 package ·High power dissipation ·Low collector saturation voltage APPLICATIONS ·Switching regulators ·DC-DC convertor ·General purpose power amplifiers PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25? CONDITIONS Open emitter Open base Open collector VALUE 250 80 5 6 50 150 -55~150 UNIT V V V A W ? ? Free Datasheet http://www.datasheet4u.
