PFD2015 - Coupled Inductors

PFD2015 Description

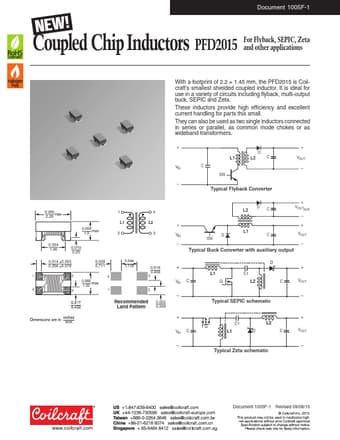

Document 1005F-1 Coupled Chip Inductors  PFD2015 ForFlyback,SEPIC,Zeta and other applications With a footprint of 2.2 × 1.45 mm, the PFD2015 is Coilc.

PFD2015 Applications

* With a footprint of 2.2 × 1.45 mm, the PFD2015 is Coilcraft’s smallest shielded coupled inductor. It is ideal for use in a variety of circuits including flyback, multi-output buck, SEPIC and Zeta. These inductors provide high efficiency and excellent current handling for parts this small. They can

📥 Download Datasheet

Preview of PFD2015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PFD2015
Manufacturer
Coilcraft
File Size
546.60 KB
Datasheet
PFD2015-Coilcraft.pdf
Description
Coupled Inductors
