SLC7530S-820ML, SLC7530 Datasheet - Coilcraft

SLC7530S-820ML Shielded Power Inductors

Document 366-1 Shielded Power Inductors SLC7530 Designed for high-speed switch mode applications Can be used as a 1:1 transformer or in SEPIC applications Designer’s Kit C379 contains 3 each of all values. Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations  RoHS compliant matte tin over nickel over copper. Other terminations available at additional cost. Weight:  0.44 0.47 g Ambient temperature  40°C to +85°.

SLC7530-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: SLC7530S-820ML, SLC7530. Please refer to the document for exact specifications by model.

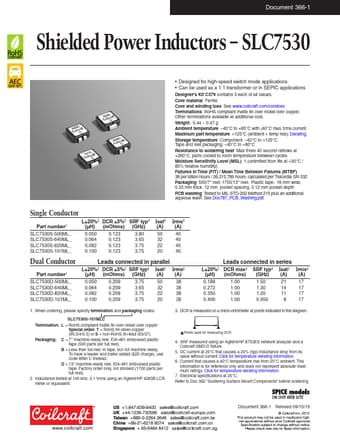

SLC7530S-820ML Datasheet Preview Page 2 SLC7530S-820ML Datasheet Preview Page 3

Datasheet Details

Part number:

SLC7530S-820ML, SLC7530

Manufacturer:

Coilcraft

File Size:

420.47 KB

Description:

Shielded power inductors.

Note:

This datasheet PDF includes multiple part numbers: SLC7530S-820ML, SLC7530.
Please refer to the document for exact specifications by model.
