TA7608-AL Flyback Transformer

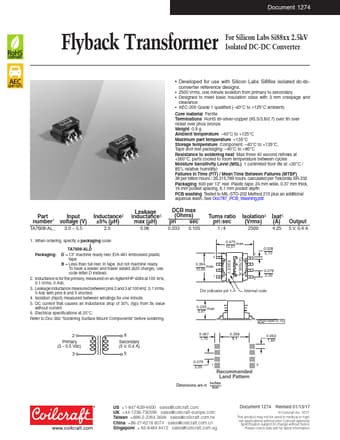

Document 1274 Flyback Transformer For Silicon Labs Si88xx 2.5kV Isolated DC-DC Converter Developed for use with Silicon Labs Si88xx isolated dc-dcconverter reference designs. 2500 Vrms, one minute isolation from primary to secondary Designed to meet basic insulation class with 3 mm creepage and clearance AEC-200 Grade 1 qualified ( 40°C to +125°C ambient) Core material Ferrite Terminations RoHS tin-silver-copper (95.5/3.8/0.7) over tin over n.

TA7608-AL-Coilcraft.pdf

TA7608-AL Datasheet Preview — Preview of TA7608-AL PDF

Datasheet Details

Part number:

TA7608-AL

Manufacturer:

Coilcraft

File Size:

196.47 KB

Description:

Flyback transformer.
