TA7613AP - LINEAR INTEGRATED CIRCUIT

Product Overview

Datasheet Details

Part number	TA7613AP
Manufacturer	ETC
File Size	45.48 KB
Description	LINEAR INTEGRATED CIRCUIT
Datasheet	TA7613AP Datasheet

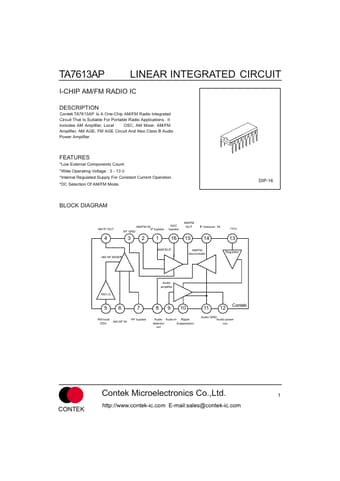

Additional preview pages of the TA7613AP datasheet.

Product details

Description

LINEAR INTEGRATED CIRCUIT I-CHIP AM/FM RADIO IC Contek TA7613AP Is A One-Chip AM/FM Radio Integrated Circuit That Is Suitable For Portable Radio Applications.It Includes AM Amplifier, Local OSC, AM Mixer, AM/FM Amplifier, AM AGE, FM AGE Circuit And Also Class B Audio Power Amplifier.

Features

Low External Components Count.
Wide Operating Voltage : 3 - 13 V.
Internal Regulated Supply For Constant Current Operation.
DC Selection Of AM/FM Mode. DIP-16 BLOCK.
