TA7618-AL Flyback Transformer

Document 1290 Flyback Transformer For Silicon Labs Si88xx 5kV Isolated DC-DC Converter Developed for use with Silicon Labs Si88xx isolated dc-dcconverter reference designs. 5000 Vrms, one minute isolation from primary to secondary Designedtomeetreinforcedinsulationclasswith8 mmcreepage and clearance. AEC-200 Grade 1 qualified ( 40°C to +125°C ambient) Core material Ferrite Terminations RoHS tin-silver-copper (95.5/3.8/0.7) over tin over nicke.

TA7618-AL Datasheet (139.08 KB)

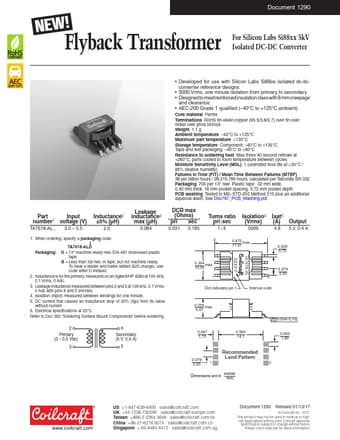

TA7618-AL Datasheet Preview — Preview of TA7618-AL PDF

Datasheet Details

Part number:

TA7618-AL

Manufacturer:

Coilcraft

File Size:

139.08 KB

Description:

Flyback transformer.
