CDBC3100 - SMD Schottky Barrier Rectifier

CDBC3100 Description

SMD Schottky Barrier Rectifier COMCHIP www.comchip.com.tw CDBC320 Thru CDBC3100 Reverse Voltage: 20 - 100 Volts Forward Current: 3.0 Amp .

CDBC3100 Applications

* Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Built-in strain relief Low forward voltage drop SMC/DO-214AB 0.124(3.15) 0.108(2.75) 0.280(7.11) 0.245(6.22) 0.220(5.59) Mechanical data Case: JEDEC DO-214AB molded plastic Terminals: solderable per MIL-S

📥 Download Datasheet

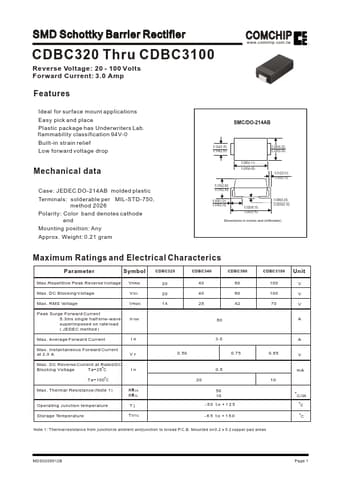

Preview of CDBC3100 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CDBC3100
Manufacturer
Comchip Technology
File Size
64.81 KB
Datasheet
CDBC3100_ComchipTechnology.pdf
Description
SMD Schottky Barrier Rectifier
