CDBC3200-HF, CDBC3150-HF SMD Schottky Barrier Rectifiers

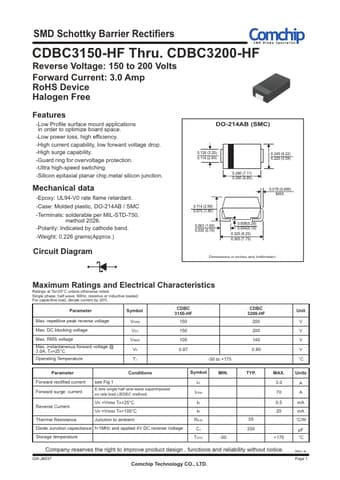

📥 Download Datasheet  Datasheet Preview Page 1

Description

SMD Schottky Barrier Rectifiers CDBC3150-HF Thru.CDBC3200-HF Reverse Voltage: 150 to 200 Volts Forward Current: 3.0 Amp RoHS Device Halogen Free Fe.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDBC3200-HF, CDBC3150-HF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CDBC3200-HF, CDBC3150-HF
Manufacturer
Comchip Technology
File Size
226.33 KB
Datasheet
CDBC3150-HF-ComchipTechnology.pdf
Description
SMD Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: CDBC3200-HF, CDBC3150-HF.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space. -Low power loss, high efficiency. -High current capability, low forward voltage drop. -High surge capability. -Guard ring for overvoltage protection. -Ultra high-speed switching. -Silicon epitaxial planar chip,metal silicon junction. Mechanical data -Epoxy: UL94-V0
