CDBFR0130R-HF - SMD Schottky Barrier Diode

Name: CDBFR0130R-HF
SKU: CDBFR0130R-HF-1001635

Comchip Technology

The CDBFR0130R-HF by Comchip Technology is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBFR0130R-HF
Manufacturer	Comchip Technology
File Size	116.70 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBFR0130R-HF-ComchipTechnology.pdf

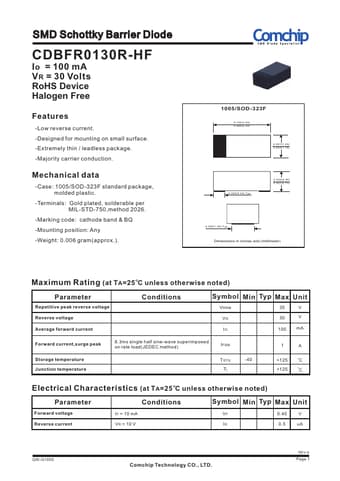

Additional preview pages of the CDBFR0130R-HF datasheet.

-Low reverse current. -Designed for mounting on small surface. -Extremely thin / leadless package. -Majority carrier conduction. Mechanical data -Case: 1005/SOD-323F standard package, molded plastic. -Terminals: Gold plated, solderable per MIL-STD-750,method 2026. -Marking code: cathode band & BQ -Mounting position: Any -Weight: 0.006 gram(approx. ). 1005/SOD-323F 0.102(2.60) 0.095(2.40) 0.051(1.30) 0.043(1.10) 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) 0.040(1.00) Typ. Dimensions in inches and.
