CDSS101A

SMD Switching Diode

CDSS101A Features

* Designed for mounting on small surface. High speed switching. High mounting capability, strong surge withstand, high reliability. 0.008(R0.20) Typ. 0805(2012) 0.087(2.20) 0.079(2.00) 0.016(0.40) Typ Mechanical data Case: 0805(2012) standard package, molded plastic. Terminals: Solder plated, solder

CDSS101A Datasheet (56.16 KB)

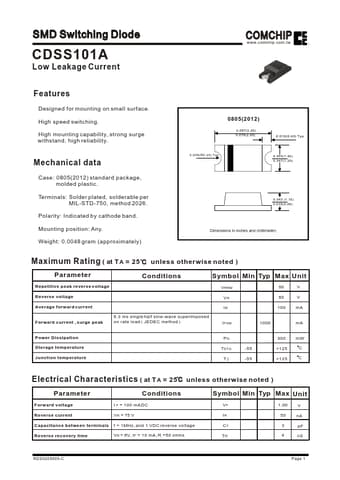

Preview of CDSS101A PDF

Datasheet Details

Part number:

CDSS101A

Manufacturer:

Comchip Technology

File Size:

56.16 KB

Description:

Smd switching diode.
