MB254, MB2505 - (MB2505 - MB2510) High Current Bridge Rectifier

Comchip Technology

Datasheet Details

Part number	MB254, MB2505
Manufacturer	Comchip Technology
File Size	205.92 KB
Description	(MB2505 - MB2510) High Current Bridge Rectifier
Datasheet	MB2505_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MB254, MB2505. Please refer to the document for exact specifications by model.

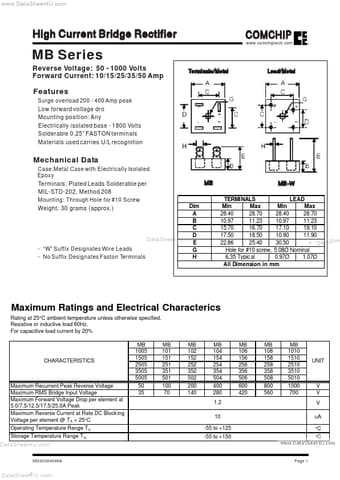

Surge overload 200 - 400 Amp peak Low forward voltage dro Mounting position: Any Electrically isolated base - 1800 Volts Solderable 0.25” FASTON terminals Materials used carries U/L recognition Mechanical Data Case:Metal Case with Electrically Isolated Epoxy Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Mounting: Through Hole for #10 Screw Weight: 30 grams (approx. ) MB MB-W Dim A B C D DataSheet4U. com E - “W” Suffix Designates Wire Leads G - No Suffix Designates Faston Ter.
