SR15A60F-G, SR15A20F-G - Schottky Barrier Rectifiers

Comchip Technology

Datasheet Details

Part number	SR15A60F-G, SR15A20F-G
Manufacturer	Comchip Technology
File Size	77.47 KB
Description	Schottky Barrier Rectifiers
Datasheet	SR15A20F-G_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: SR15A60F-G, SR15A20F-G. Please refer to the document for exact specifications by model.

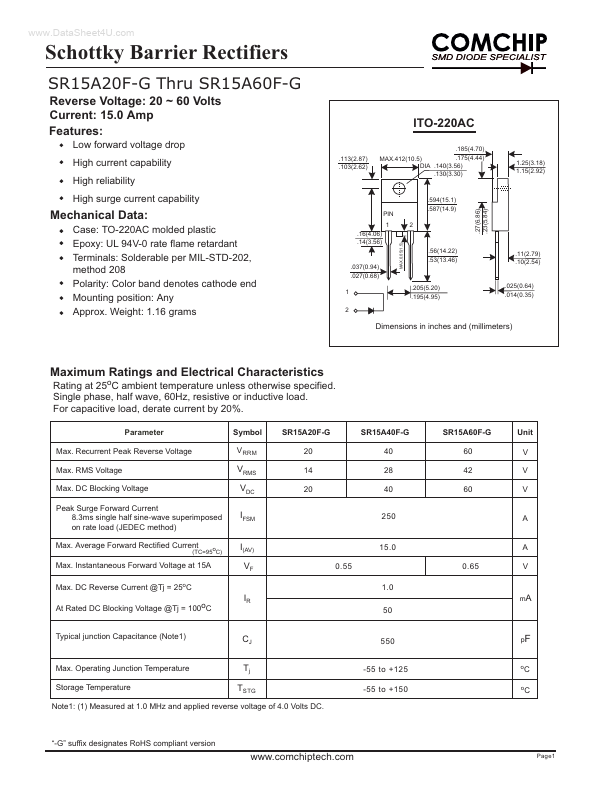

Low forward voltage drop High current capability High reliability High surge current capability .113(2.87) .103(2.62) ITO-220AC .185(4.70) .175(4.44) MAX.412(10.5) DIA .140(3.56) .130(3.30) 1.25(3.18) 1.15(2.92) Mechanical Data: Case: TO-220AC molded plastic Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202, method 208 Polarity: Color band denotes cathode end Mounting position: Any Approx. Weight: 1.16 grams .16(4.06) .14(3.56) PIN 1 MAX.0.05(1.5) 2 .56(14.22) .53.
