BC846B-G - Small Signal Transistor

This page provides the datasheet information for the BC846B-G, a member of the BC848A-G Small Signal Transistor family.

Datasheet Summary

Features

  • -Power dissipation O PCM: 0.20W (@TA=25 C) -Collector current ICM: 0.1A -Collector-base voltage VCBO: BC846=80V BC847=50V BC848=30V -Operating and storage junction temperature range: TJ, TSTG= -65 to +150 OC SOT-23 0.118(3.00) 0.110(2.80) 3 0.055(1.40) 0.047(1.20) 1 0.079(2.00) 0.071(1.80) 2 Mechanical data -Case: SOT-23, molded plastic. -Terminals: solderable per MIL-STD-750, method 2026. -Approx. weight: 0.008 grams 0.041(1.05) 0.035(0.90) 0.006(0.15) 0.003(0.08) 0.100(2.55) 0.089(2.25).

📥 Download Datasheet

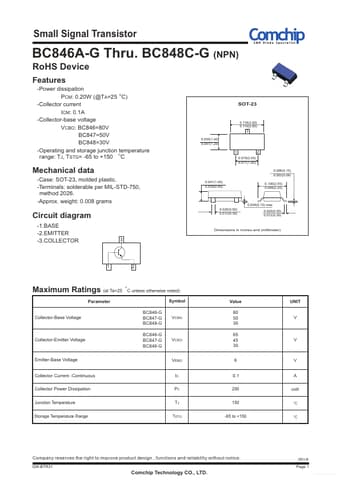

Datasheet preview – BC846B-G

Datasheet Details

Part number BC846B-G
Manufacturer Comchip
File Size 168.62 KB
Description Small Signal Transistor
Datasheet download datasheet BC846B-G Datasheet
