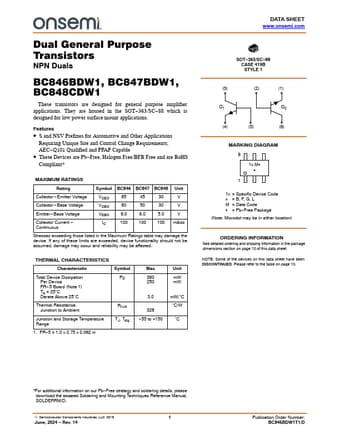

Dual General Purpose Transistors
NPN Duals
BC846BDW1, BC847BDW1, BC848CDW1
These transistors are designed for general purpose amplifier applications. They are housed in the SOT−363/SC−88 which is designed for low power surface mount applications.
Features
• S and NSV Prefixes for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS
Rating
Symbol BC846 BC847 BC848 Unit
Collector −Emitter Voltage
VCEO
65
45
30
V
Collector −Base Voltage
VCBO
80
50
30
V
Emitter −Base Voltage
VEBO
6.0
6.0
5.
