KBP201G-G, KBP2005G-G, Glass Passivated Bridge Rectifiers

Glass Passivated Bridge Rectifiers KBP2005G-G Thru.KBP210G-G Reverse Voltage: 50 to 1000V Forward Current: 2.0 Amp RoHS Device .

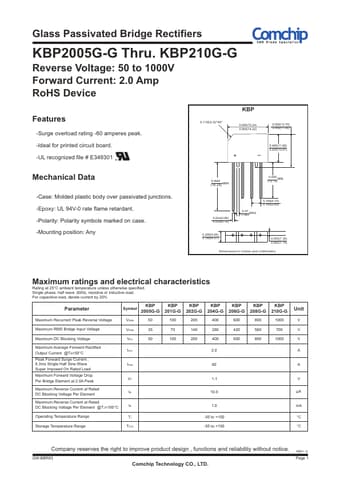

datasheet Preview Page 1 from Datasheet4u.com

KBP2005G-G-Comchip.pdf

KBP201G-G Datasheet Preview — This datasheet PDF includes multiple part numbers: KBP201G-G, KBP2005G-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBP201G-G, KBP2005G-G

Manufacturer:

Comchip

File Size:

62.29 KB

Description:

Glass Passivated Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: KBP201G-G, KBP2005G-G.
Please refer to the document for exact specifications by model.

Features

* -Surge overload rating -60 amperes peak. -Ideal for printed circuit board. -UL recognized file # E349301 R 0.118(3.0)
* 45° KBP 0.600(15.24) 0.560(14.22) 0.500(12.70) 0.460(11.68) 0.460(11.68) 0.420(10.67) +─ Mechanical Data -Case: Molded plastic body over passivated junctions. -Epoxy: UL 94V
