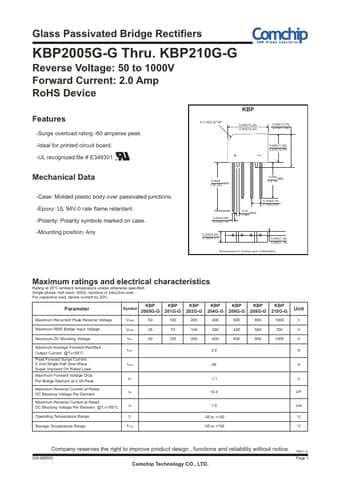

KBP208G-G, KBP2005G-G - Glass Passivated Bridge Rectifiers

Comchip

Datasheet Details

Part number: KBP208G-G, KBP2005G-G
Manufacturer: Comchip
File Size: 62.29 KB
Datasheet: KBP2005G-G-Comchip.pdf
Description: Glass Passivated Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: KBP208G-G, KBP2005G-G.
Please refer to the document for exact specifications by model.

-Surge overload rating -60 amperes peak. -Ideal for printed circuit board. -UL recognized file # E349301 R 0.118(3.0).
45° KBP 0.600(15.24) 0.560(14.22) 0.500(12.70) 0.460(11.68) 0.460(11.68) 0.420(10.67) +─ Mechanical Data -Case: Molded plastic body over passivated junctions. -Epoxy: UL 94V-0 rate flame retardant. -Polarity: Polarity symbols marked on case. -Mounting position: Any 0.640 (16.25) MIN. 0.500 MIN. (12.70) 0.034(0.86) 0.028(0.76) 0.07 (1.80) MAX. 0.160(4.10) 0.140(3.60.
