KBP208-G, KBP200-G, (KBP200-G - KBP210-G) Silicon Bridge Rectifiers

www.DataSheet4U.com Silicon Bridge Rectifiers KBP200-G thru 2010-G (RoHS Device) Reverse Voltage: 50 ~ 1000 Volts Forward Current: 2.0 Amp .

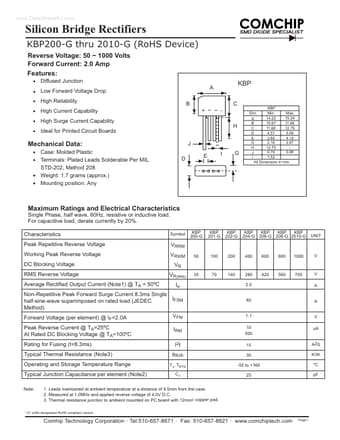

datasheet Preview Page 1 from Datasheet4u.com

KBP200-G_ComchipTechnology.pdf

KBP208-G Datasheet Preview — This datasheet PDF includes multiple part numbers: KBP208-G, KBP200-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBP208-G, KBP200-G

Manufacturer:

Comchip Technology

File Size:

84.33 KB

Description:

(KBP200-G - KBP210-G) Silicon Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: KBP208-G, KBP200-G.
Please refer to the document for exact specifications by model.

Features

* Diffused Junction Low Forward Voltage Drop High Reliability High Current Capability High Surge Current Capability Ideal for Printed Circuit Boards H J D E I G B + ~ ~ A C KBP Min. Max Dim 14.22 15.24 A B 11.68 10.67 C 11.68 12.70 D 4.57 5.08 3.60 4.10 E 2.16 2.67 G 12.70 H 0.88 0.76 J 1.52 I All Di
