KBP2010 - Silicon Bridge Rectifiers

Comchip Technology

📥 Download Datasheet

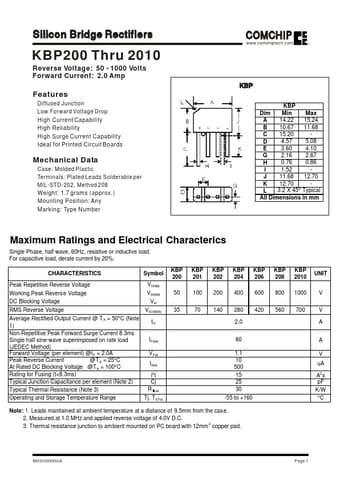

KBP2010 Datasheet Preview — Preview of KBP2010 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: KBP2010
Manufacturer: Comchip Technology
File Size: 138.14 KB
Datasheet: KBP2010_ComchipTechnology.pdf
Description: Silicon Bridge Rectifiers

KBP2010 Product details

Features

Diffused Junction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Ideal for Printed Circuit Boards Mechanical Data Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Weight: 1.7 grams (approx. ) Mounting Position: Any Marking: Type Number KBP Dim Min Max 14.22 15.24 A 10.67 11.68 B 15.20 C 4.57 5.08 D 3.60 4.10 E 2.16 2.67 G 0.76 0.86 H 1.52 I 11.68 12.70 J 12.70 K 3.2 X 45° Typical L All Dimensions in mm Maximu.
