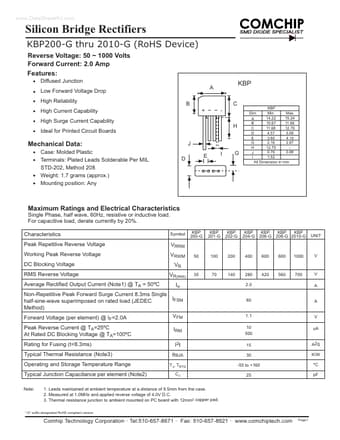

KBP206-G, KBP200-G - Silicon Bridge Rectifiers

Comchip Technology

Datasheet Details

Part number: KBP206-G, KBP200-G
Manufacturer: Comchip Technology
File Size: 84.33 KB
Datasheet: KBP200-G_ComchipTechnology.pdf
Description: Silicon Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: KBP206-G, KBP200-G.
Please refer to the document for exact specifications by model.

Diffused Junction Low Forward Voltage Drop High Reliability High Current Capability High Surge Current Capability Ideal for Printed Circuit Boards H J D E I G B + ~ ~ A C KBP Min. Max Dim 14.22 15.24 A B 11.68 10.67 C 11.68 12.70 D 4.57 5.08 3.60 4.10 E 2.16 2.67 G 12.70 H 0.88 0.76 J 1.52 I All Dimension in mm KBP Mechanical Data: Case: Molded Plastic Terminals: Plated Leads Solderable Per MIL STD-202, Method 208 Weight: 1.7 grams (approx. ) Mounting position: Any Maximum Ratings and Electri.
